Laser Safety for High Intensity Lasers in New York State

LASERs are highly regulated devices.  This post is about the NY State Laser Use Regulations.

I am not a lawyer and any mention of laws or regulations mentioned herein should be considered guiding advice for compliance but not considered as legally accurate.

Just as with many things, several governmental bodies regulate LASER use within the public domain.  In the United States, the Federal agency regulating LASER use is the Food and Drug Administration, of FDA. (this blog is largely about the New York State Regulations, though some mention of Federal Laws/regulations will be mentioned.)

The State agency, in New York, which has separate LASER regulations is the New York State Department of Labor - specifically the Division of Safety and Health, Laser Unit.  This department within the agency issues a license for a LASERs classified as Mobile Lasers.


What is a Mobile Laser?

If you have a laser cutter in a facility, or are operating physics tests within a space, these lasers do not require a Certification.  The moment any laser of any wattage (with some exceptions outlined below) becomes "Mobile"  - leaves a closed and protected space where the public is not trained, or instructed, and the laser is within that sphere of use, NYS requires a mobile laser licensed operator.

Code Rule 50 Definitions:

Mobile Laser:  a Laser which operates outside of a laser installation.

Laser Installation:  Any location where, for a period of more than 30 days, one or more lasers are used or operated.  The confines of a laser installation shall be designated by the owner of such an installation.  An entire building or other structure, a part thereof or a plant may be designated as a laser installation.  For the purposes of this Part (rule), a construction site shall not be considered a laser installation.

Basically an uncontrolled area is defined as outside of a laser installation and requires a Mobile Laser Operator.


HOW TO GET LICENSED:

NYSDOL divides the Mobile Laser Operator's License into two types, a Class A and a Class B. There is a test which must be taken in person at the NYSDOL.

To operate a Mobile Laser the Lasers are split into "low wattage" and "high wattage" - kind-of.  More on that in a moment.

The Class A Mobile Laser Operator's License Exam is a relatively simple test filled with questions regarding safe use of lasers, usually catered to usage of lasers within the construction field.

Class A topics are distributed as: Laser Physics - 20% of exam / Laser Bioeffects - 20% of exam / Laser Safety - 40% of exam / Industrial Code Rule 50 - 20% of exam

The Class B Mobile Laser Operator's License Exam is the Class A Mobile Laser Operator's Exam and a much more extensive test including lots of math.

Class B topics are distributed as:  Laser Physics - 14.3% of exam / Laser Bioeffects - 14.3% of exam / Laser Health Physics - 14.3% of exam / Laser Safety - 36.1% of exam / Industrial Code Rule 50 - 21% of exam

To sit for the Mobile Laser Class A or B License Exam with the NYSDOL, one must have either 1 year of experience working with Mobile Lasers or must have successfully participated in a certified course.  The certified courses list can be found on the last page of THIS PDF.


MPE - SAFE LASER USE - LEGAL DEFINITIONS

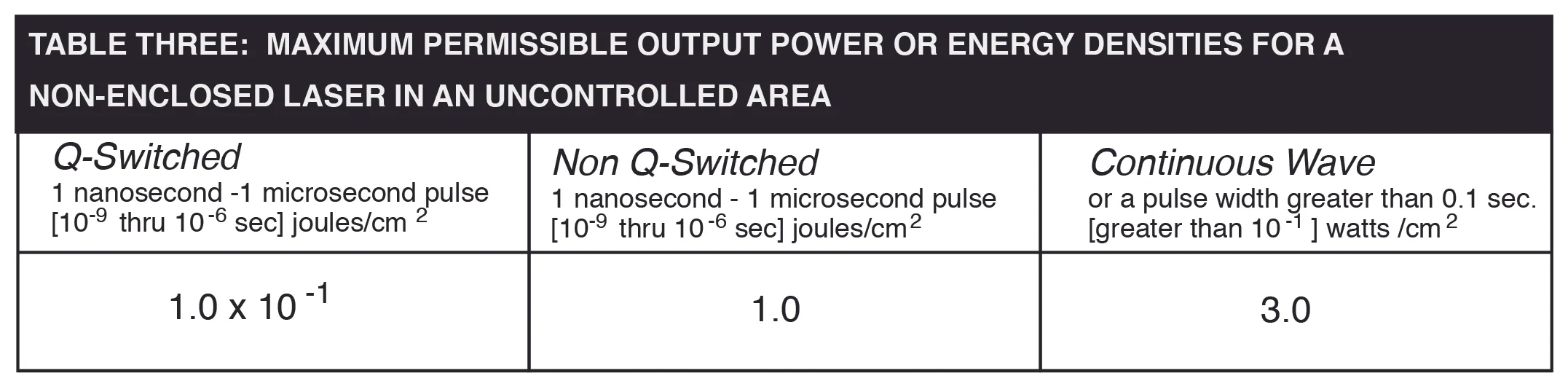

MPE is defined as Maximum Permissible Exposure. NYS Code Rule 50.  There are 3 tables which define the parameters for MPE within Code Rule 50.


These charts may seem a bit like a foreign language unless you are well versed in measuring wattage/joules/nanometers etc.

So let us go into some basic Laser terms / functions / measurements.


LASER TERMS / MEASUREMENTS Biological effects - primer

LASER is an acronym which stands for Light Amplification by Stimulated Emission of Radiation.

LASERs are measured in wavelength, and their wavelength correlates to their color.

  PNG Link  to file above

PNG Link to file above

For instance, A HeNe Laser is about 600nm (red in color), whereas a green laser pointer is ideally 532nm.  A C02 laser (typically found in laser cutters) is in the infrared and is 10,600 nm.

The bioeffects of lasers in different wavelengths manifest differently - especially in the eye (which is the most dangerous in Laser use.)

Light travels through the eye via specific components of the eye.


Infrared wavelengths (1400 or above) are absorbed on the cornea.  The cornea has no red blood cells and therefore cannot heal itself.

The Retina absorbs 400-1400 nanometer wavelength light (which includes the visible spectrum).

For wavelengths which fall below 400nm, the NYSDOL have not resolved what damages may occur under any exposure amount, and therefore cap the wavelength parameters at 400nm ++.

Because of the biological mechanisms - Code Rule 50 indicates different exposure limits for the eye in Table 1.


Let's talk about Laser types:

Continuous Wave:  a laser that emits a continuous laser beam with a controlled heat output, as beam duration and intensity.

Pulsed Lasers: any laser not classified as continuous wave, - the optical power appears in pulses of some duration at some repetition rate. This encompasses a wide range of technologies addressing a number of different motivations. Some lasers are pulsed simply because they cannot be run in continuous mode.  In other cases the application requires the production of pulses having as large an energy as possible

Q-Switched:  is a technique by which a laser can be made to produce a pulsed output beam. The technique allows the production of light pulses with extremely high peak power, much higher than would be produced by the same laser if it were operating in a continuous wave mode.  Q-switching leads to much lower pulse repetition rates, much higher pulse energies, and much longer pulse durations


Let's talk about energy.

Watts/Joules refer to the optical power output of a laser beam.  Meaning:  What is the energy/power of the light being emitted.

Continuous wave lasers are measured in watts and pulsed lasers are measured in joules, commonly (pulsed lasers go on and off at a specific frequency, and thus must incorporate time in energy calculations).  However, mathematically we could measure watts as joules and vise versa.

A watt is a measurement of power and time. (One watt is defined as the energy consumption rate of one joule per second. 1W = 1J / 1s). A Watt Second is the Watt equivalent of a joule.

In Table One of Code Rule 50, the pulsed lasers MPE are One Joule per Square Centimeter (J/cm2). The Continuous Wave and Pulsed lasers whose pulses are longer in duration than 0.1 seconds are measured in One Watt per Square Centimeter (W/cm2).  Code Rule 50 defines these measurements as The energy/power per unit area and a unit of energy/power density and radiant exposure/irradiance

Size and Collimation:

As the above definitions of permissible energy/power contend with centimeters squared.

Because lasers emit energy in the form of radiation which can be absorbed in the eye, the laser beam has an area (beam size) to consider when calculating the permissible exposure. In table one, the MPE for the eye is calculating the exposure based on a beam diameter of centimeters squared.

Lasers emit light radiation in collimated form. This means that these waves are parallel and have a small divergence.


The arrows on the left show light which is not collimated.  Those on the right are.  If considering the area which the photons (arrows) would land should the grey bar be farther away, the arrows on the right would, in a perfect environment, be the same size as it is now.  This is divergence, the consideration of the trajectory.

In the real world, however, the laser beam does experience some divergence:  the grey square does get larger, as the world and the manufacturing process are both imperfect.

Approved Lasers provide the divergence of the beam in their spec sheets. According to Code Rule 50 - Divergence MUST be clearly labeled on any Mobile Laser.

There are optics one can use which can keep the beam from diverging, or can decrease the size of the laser beam's spot size.


When considering bio effects upon the eye, we must also consider the diameter of allowable light into the eye.  The pupil has an aperture.  According to Code Rule 50, the diameter of the eye is approximately 7mm.


READING CODE RULE 50 TABLE ONE - MATHS

Irradiance is the value of power/energy density and the calculating the MPE finds the irradiance at any given distance.






NEW YORK STATE CODE RULE 50:

LASER SAFETY OFFICER - The LSO must be qualified in both occupational and public health aspects of lasers.

Evaluate potential and real-time radiation hazards of a laser installation/mobile laser.

MOBILE LASERS

LASER RADIATION PROTECTION PROGRAM

VARIANCE APPLICATION PROCEDURES

FEDERAL REGULATIONS:

Documented Operator Training

Variance Holder

No other job-site tasks

Documented control position (line of sight)



FDA Laws



Code Rule 50 New York State Department of Labor


BASIC EXEMPTIONS -

* If you are operating a Laser within a Laser Installation.

* Lasers which qualify as Low Intensity Lasers (Class I, Class IIa, Class II, Class IIIa federal classifications) are considered exempt.

pursuant to 21 Code of Federal Regulations part 1010, section 1010.2 - i.e.
